Clamcleat® CL816 Cage

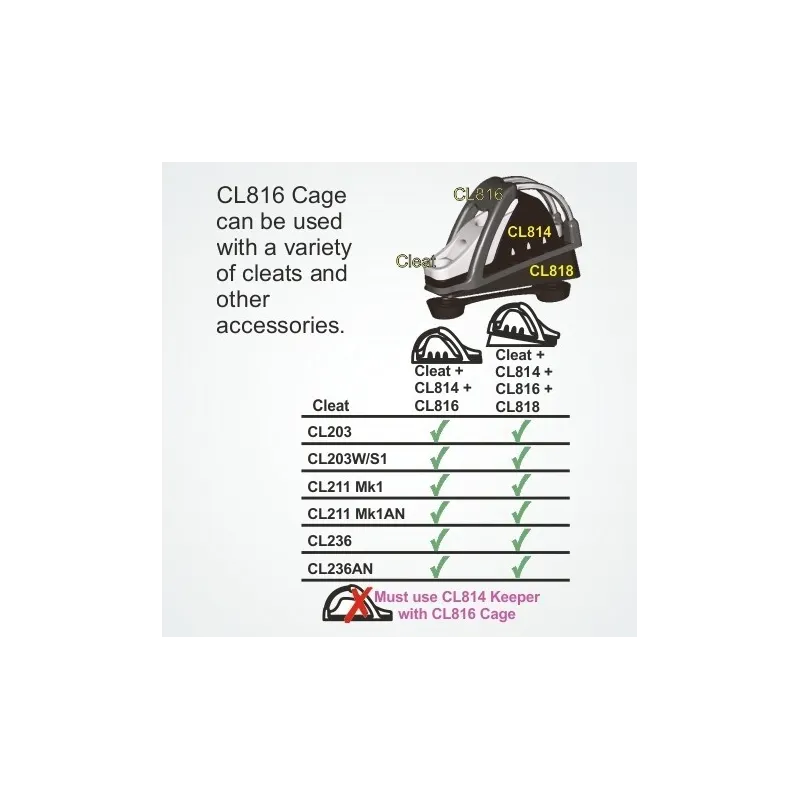

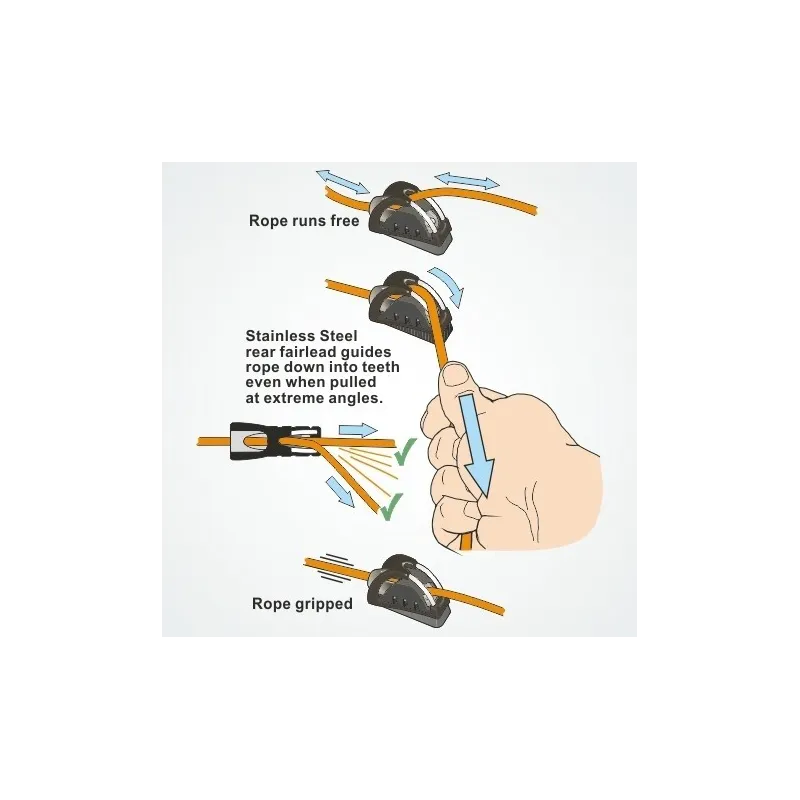

Clamcleat® CL816 Cage for CL814 & Mk1 juniors  The Cage is an accessory that allows ropes to be cleated and uncleated at an angle of up to 70 degrees, rather than only in line with the cleat. Adding Cages to cleats fitted with Keepers will allow the helmsman or crew to adjust a control line from different positions quickly, easily, positively and without fear of accidental cleating. Simply pull the rope back at an angle and it is guided down into the teeth, as shown in the sketches. The stainless steel rear fairlead provides a long life under racing conditions.

Technical Details		Metric	Imperial
Rope Diameter		3 - 6mm	1/8 - 1/4"
Material		Nylon & Stainless Steel	Nylon & Stainless Steel
Hole Centres		66mm	2 5/8"
Length		89mm	3 1/2"
Width		28mm	1 1/8"
Height		45mm	1 3/4"
Bolt Size		M5	#10-24. 3/16"
Screw Size		4.8	No 10
Weight		31gms	1.1oz
