Professional Tension Gauge Loos & Co

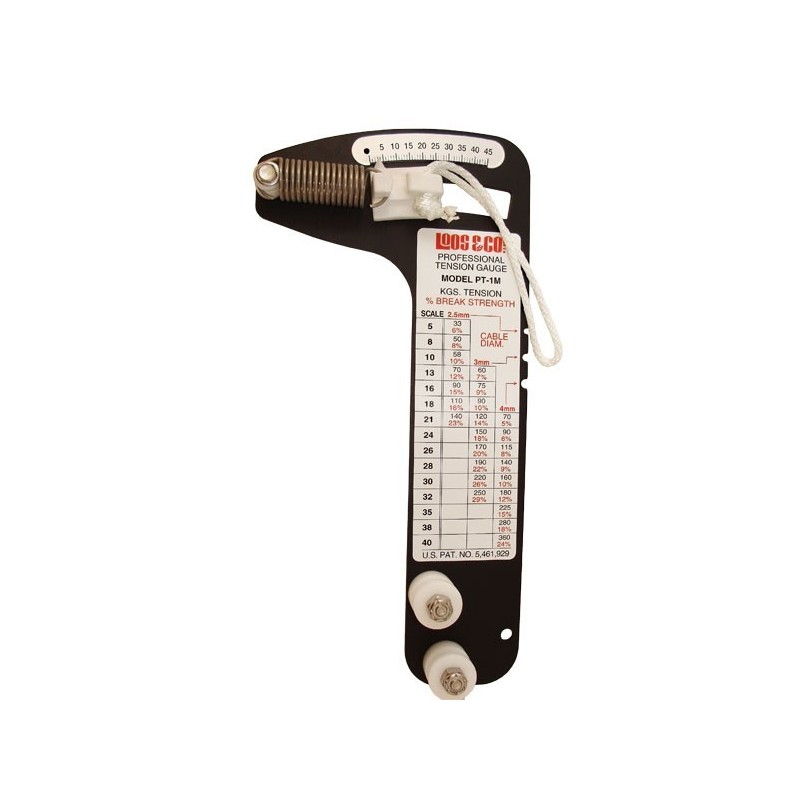

Professional Tension Tauge from Loos & Co - model n° PT-1M for cable sizes  2.5mm, 3mm, 4mm



Safe and secure checkout



Fast shipping. Free delivery Benelux above €50 - Free delivery Europe above €300



Refunds possible within 30 days

€226.00
Tax included
Quantity

in stock

Professional Tension Tauge from Loos & Co - model n° PT-1M for cable sizes  2.5mm, 3mm, 4mm

TENSION GAUGE - Professional Models
PT-1 / PT-2 / PT-3



Loos Cableware® Division offers a series of gauges to measure the tension in cables and rods from 3/32 to 3/8 inch in diameter (2.5 mm to 10 mm). These gauges are designed for setting the proper tension in the standing rigging of sailboats and also for other applications such as supporting cables for radio towers, large tents and other structures. The gauges are relatively inexpensive and are designed to be suitable for rugged marine service. The "Professional Models" provide an increasing durability, accuracy and convenience of use when compared to our popular standard models. The gauge may be hooked on the wire and will remain in position while the tension is adjusted. Manufactured of rugged anodized aluminum, this gauge is corrosive resistant and will give years of service. Detailed operating instructions are included with each tension gauge.

Professional Models - Higher accuracy and easier to use than standard models. The cable can be adjusted while the gauge remains on the cable. "Just watch the pointer move." All readings are based on 302/304 1x19 S.S breaking strengths.

The gauges measure tension over a range of approximately 5% to 25% of the breaking strength of the cable and provide an accuracy of + or - 5%.



Part No.
Description
PT-1* Cable Sizes 3/32", 1/8", 5/32"
PT-2* Cable Sizes 3/16", 7/32", 1/4"
PT-3* Cable Sizes 1/4", 9/32", 5/16", 3/8"
PT-1 Metric* Cable Sizes 2.5mm, 3mm, 4mm
PT-2 Metric* Cable Sizes 5mm, 6mm, 7mm
PT-3 Metric* Cable Sizes 7mm, 8mm, 9mm, 10mm



LCPT-1M
