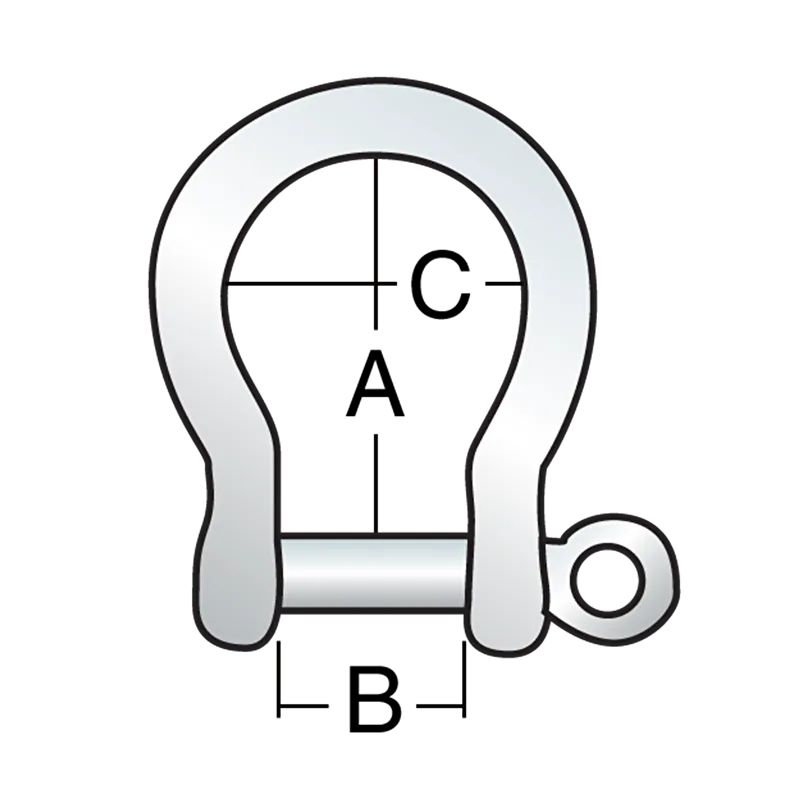

Harken 5mm Shallow Bow Shackle

Harken 5mm Shallow Bow Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Bow shackles are best for multidirectional loads. Shallow bow shackles are proportionally wider for their length than regular bow shackles.

SPECIFICATIONS RESOURCES

Shackle pin Ø (mm) 5 mm

Shackle pin Ø (in) 3/16 in

Weight (g) 14.5 g

Weight (oz) 0.51 oz

A (mm) 17 mm

A (in) 11/16 in

B (mm) 11 mm

B (in) 7/16 in

C (mm) 14 mm

C (in) 9/16 in

Maximum working load (kg) 540 kg

Maximum working load (lb) 1190 lb

Breaking load (kg) 1080 kg

Breaking load (lb) 2380 lb
