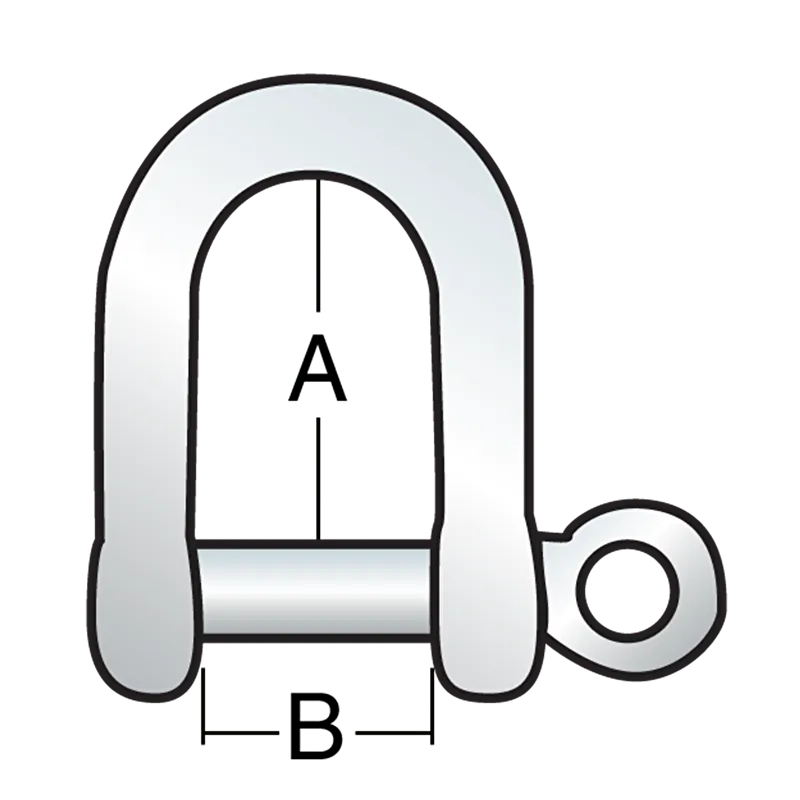

Harken 5mm Long Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Long shackles have a similar shape to "D" shackles but are proportionally longer for their width.

specifications

Shackle pin Ø (mm) 5 mm

Shackle pin Ø (in) 3/16 in

Weight (g) 22 g

Weight (oz) 0.78 oz

A (mm) 38 mm

A (in) 1 1/2 in

B (mm) 10 mm

B (in) 3/8 in

Maximum working load (kg) 540 kg

Maximum working load (lb) 1190 lb

Breaking load (kg) 1080 kg

Breaking load (lb) 2380 lb
