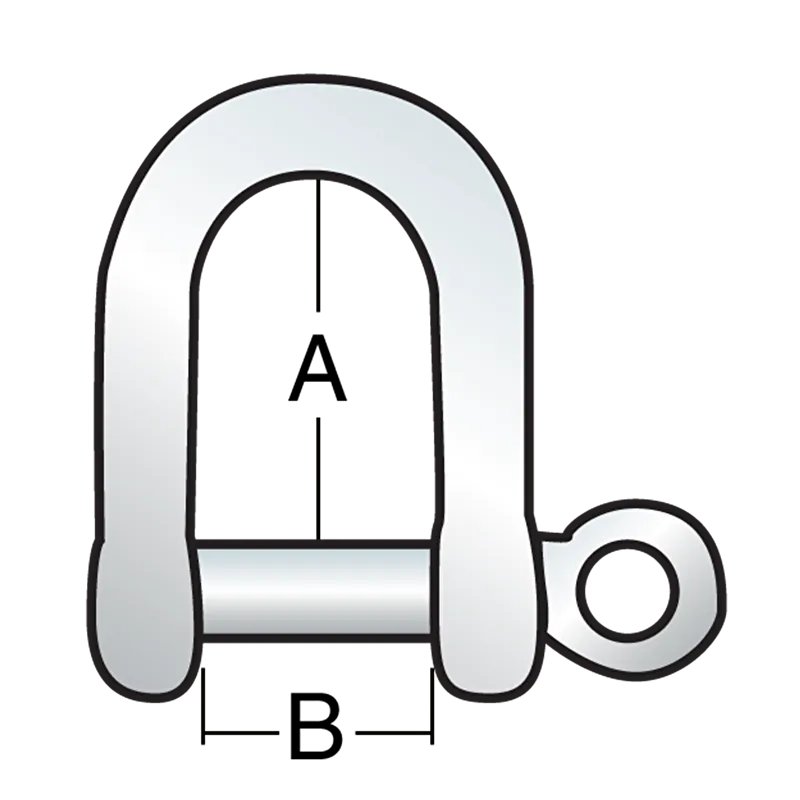

Harken 5mm Large Open Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Large open shackles have a similar shape to "D" shackles but are proportionally wider for their length.

specifications

Shackle pin Ø (mm) 5 mm

Shackle pin Ø (in) 3/16 in

Weight (g) 25 g

Weight (oz) 0.88 oz

A (mm) 33 mm

A (in) 1 5/16 in

B (mm) 20 mm

B (in) 13/16 in

Maximum working load (kg) 350 kg

Maximum working load (lb) 770 lb

Breaking load (kg) 1000 kg

Breaking load (lb) 2200 lb
