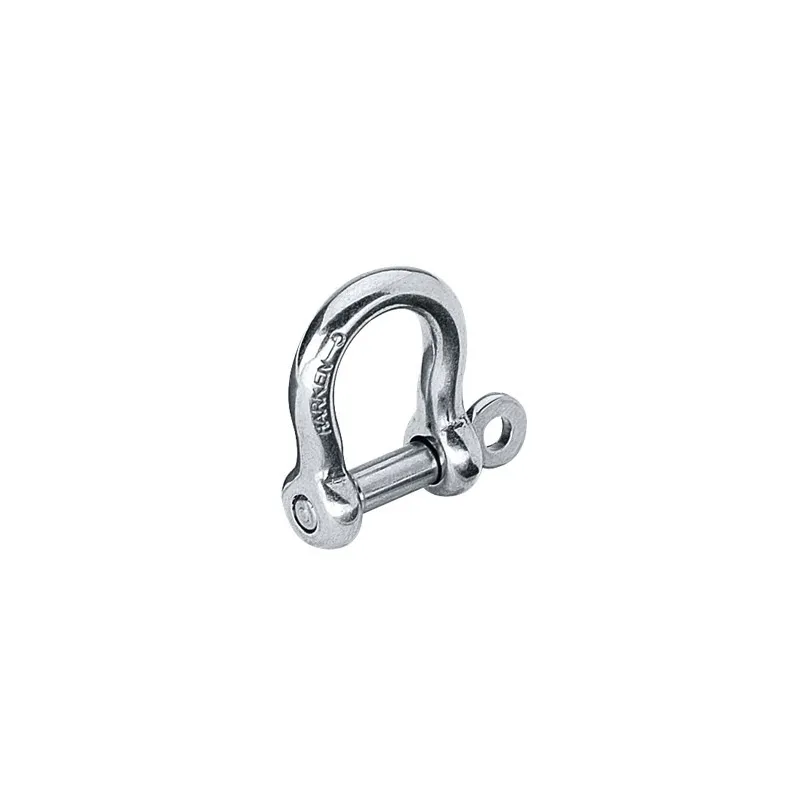

Harken 4mm Shallow Bow Shackle

Harken 4mm Shallow Bow Shackle

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter. Bow shackles are best for multidirectional loads. Shallow bow shackles are proportionally wider for their length than regular bow shackles.

specification:

Shackle pin Ø (mm) 4 mm

Shackle pin Ø (in) 5/32 in

Weight (g) 8.5 g

Weight (oz) 0.3 oz

A (mm) 16 mm

A (in) 5/8 in

B (mm) 8 mm

B (in) 5/16 in

C (mm) 11 mm

C (in) 7/16 in

Maximum working load (kg) 367 kg

Maximum working load (lb) 810 lb

Breaking load (kg) 735 kg

Breaking load (lb) 1620 lb
