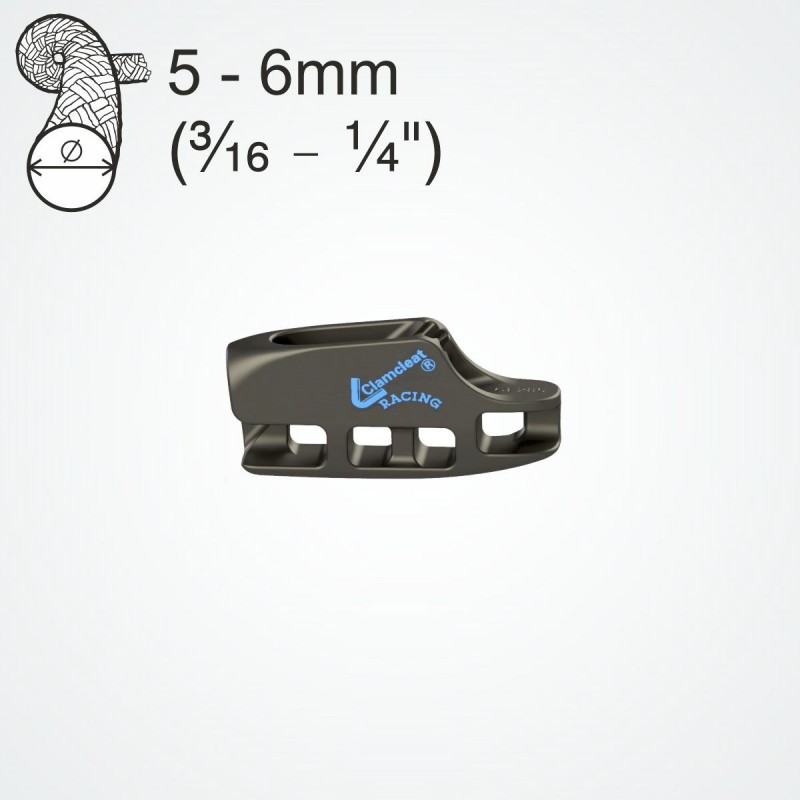

Clamcleat® CL285 Racing Aero cleat (Mk2 style)

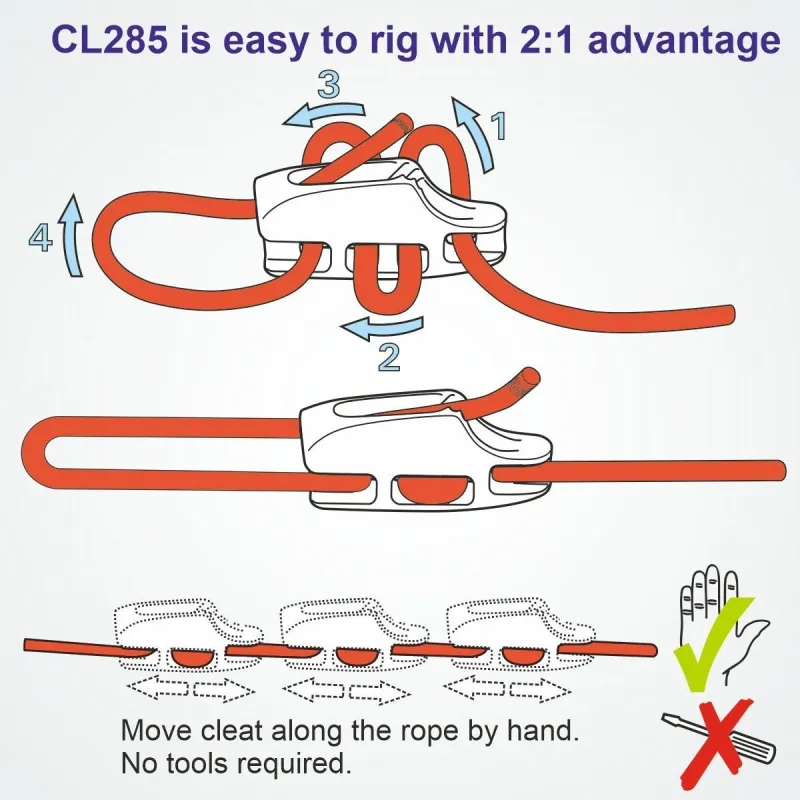

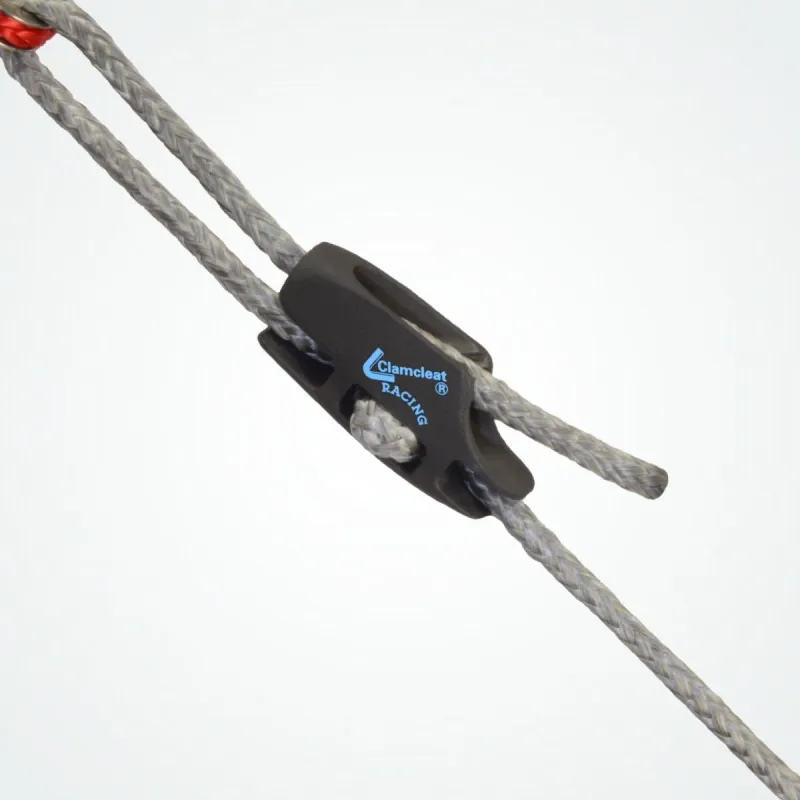

The Clamcleat® CL285 is an all aluminium cleat that is rigged on a rope. Easy to rig and adjust. The position of the cleat on the rope can be adjusted by hand. No tools required.

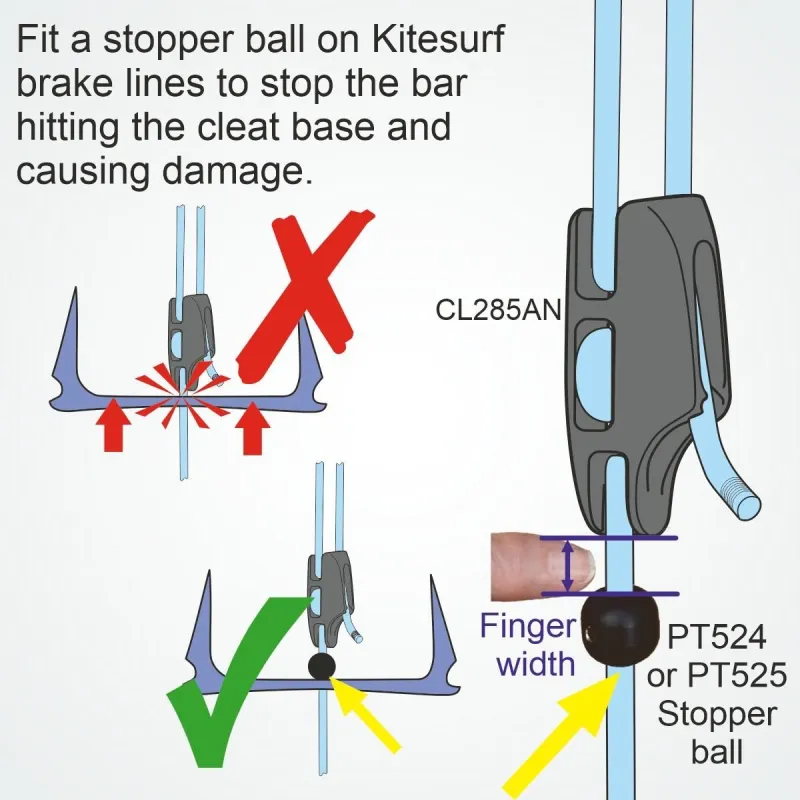

Perfect for use on kitesurf brake lines, using a 6mm rope, the CL285 is suitable for the heaviest kiter. We always advise fitting a PT524 or PT525 stopper ball on the brake line. This was designed to absorb shock between the Cleat and the bar, if the bar is released abruptly in difficult conditions and hits hard against the base of the cleat.

It is also ideal for higher loads on guy lines for tents, canvas structures, radio masts and aerials.

Technical Details		Metric	Imperial
Rope Diameter		5-6mm	3/16 - 1/4"
Material		Aluminium	Aluminium
Hole Centres		-mm	-"
Length		67mm	2 5/8"
Width		15mm	5/8"
Height		30mm	1 3/16
Bolt Size		-	-
Screw Size		-	-
Weight		34gms	1.2oz
