Clamcleat CL835 Thru Tube Sheave Plate

Clamcleat CL835 Thru Tube Sheave Plate

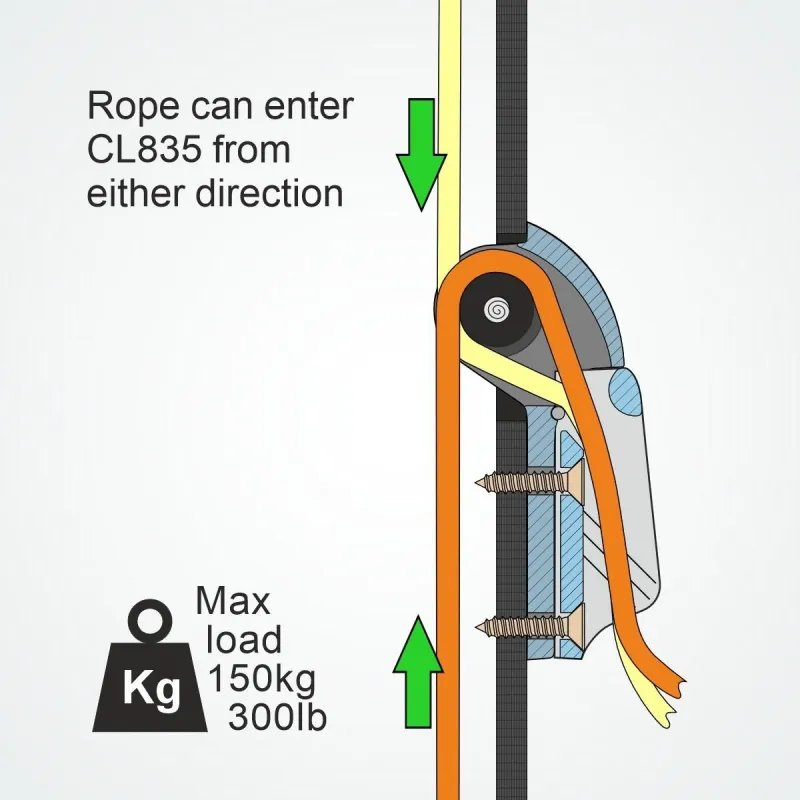

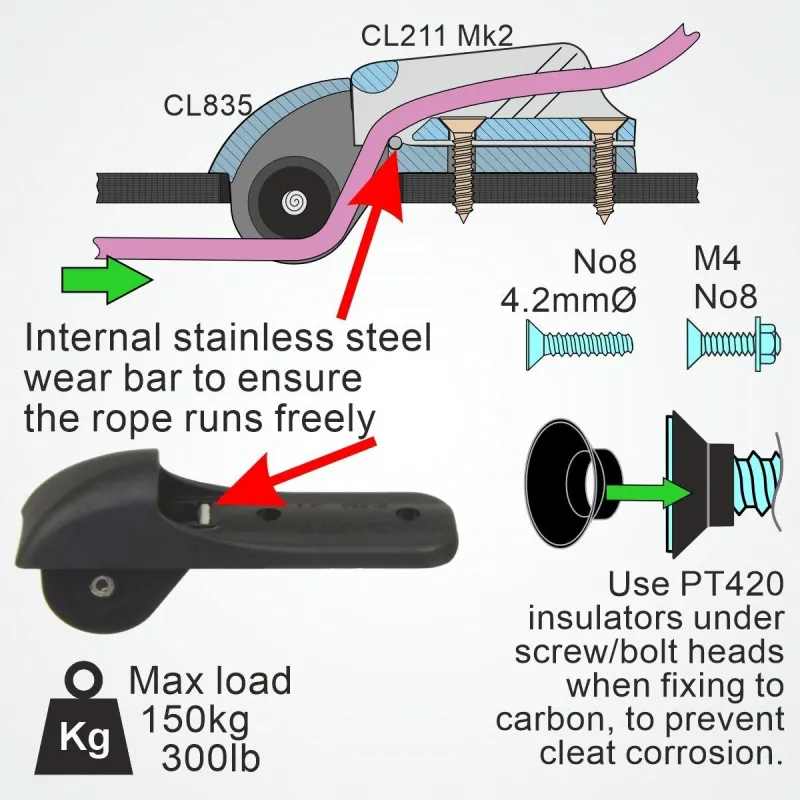

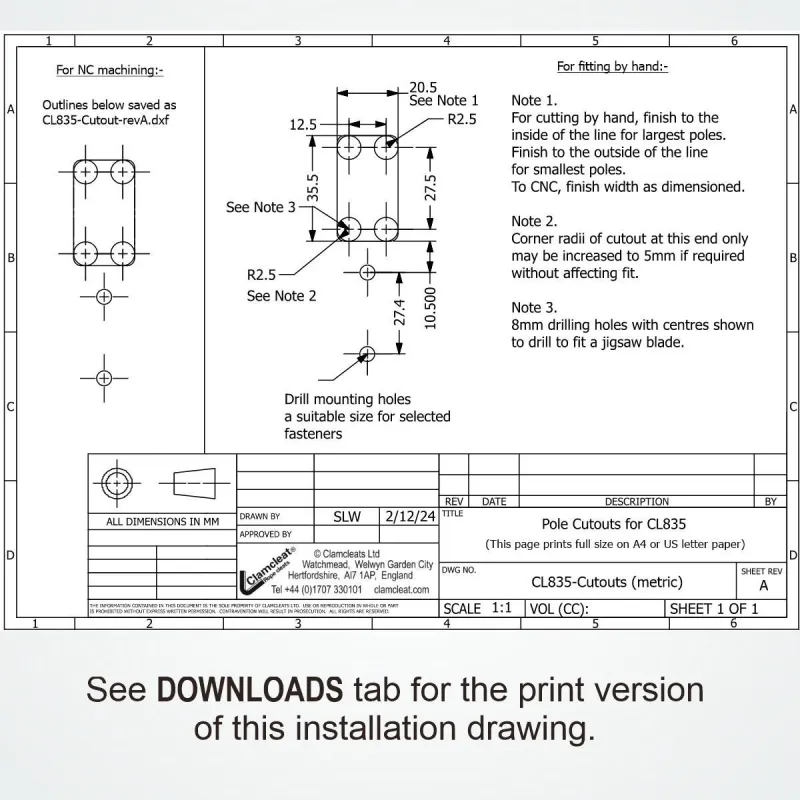

The Clamcleat® CL835 is designed to take the rope from inside the tube to outside and to cleat it off using either Aluminium CL211 Mk2 or Nylon CL272 cleats. Holds 3-6mm (1/8"-1/4") ropes. Maximum load 150kg (300lb). Ideal for use with sunshades and flag poles. The sheave keeps the rope from coming into contact with the fixings and will allow the rope to travel is the same direction as the cleat or at 180 degrees. The plate housing is designed to ensure a tidy finish even if the hole cut in the tube is slightly over size. See the Downloads tab for a cutting diagram that you can print and use as a cutting template.  Please contact us if you would like a DXF file for NC machining.

Technical Details		Metric	Imperial
Rope Diameter		3 - 6mm	1/8 - 1/4""
Material		Nylon & Stainless Steel	Nylon & Stainless Steel
Hole Centres		27.4mm	1 1/16""
Length		n/a	2"
Width		16mm	5/8""
Height		n/a	n/a

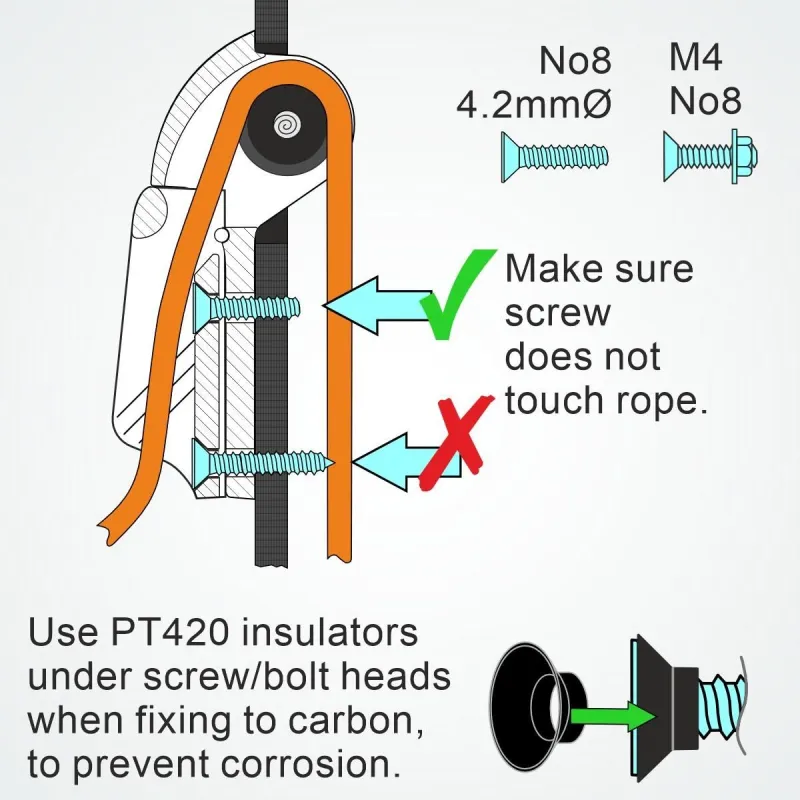

Bolt Size		M4	#8-32. 5/32"
Screw Size		4.2	n/a
Weight		n/a	n/a
