Clamcleat Insulator for Racing Micros cleats

Clamcleat Insulator for Racing Micros cleats

Prevent corrosion in salt water, between alloy cleats and carbon fibre spars.  Using the PT424&25 insulates the cleat by keeping it separate from the fixings and surface.  Mostly used on carnon fibre tillers, masts and spars.

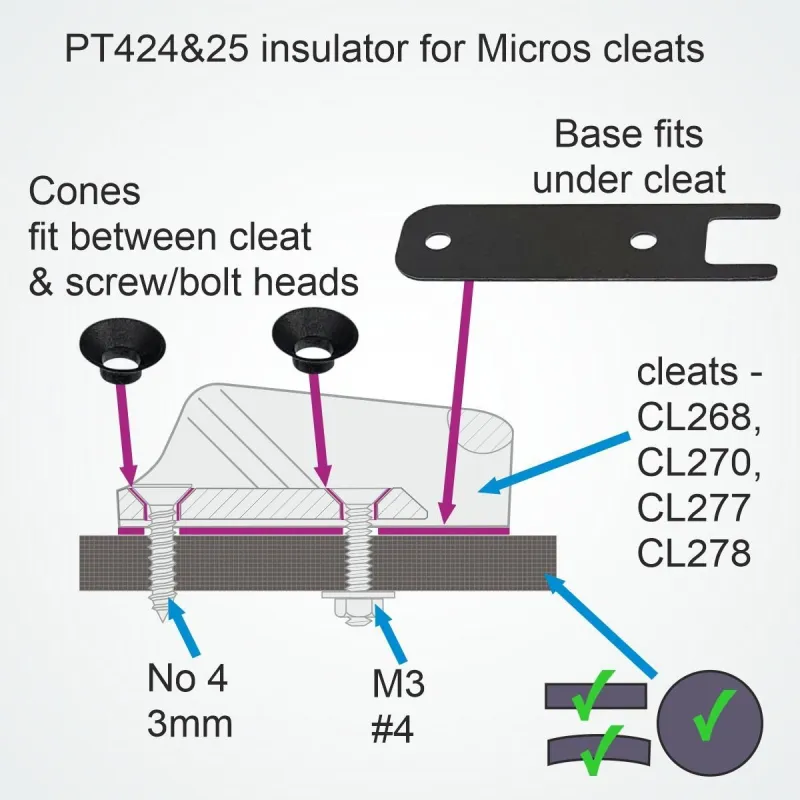

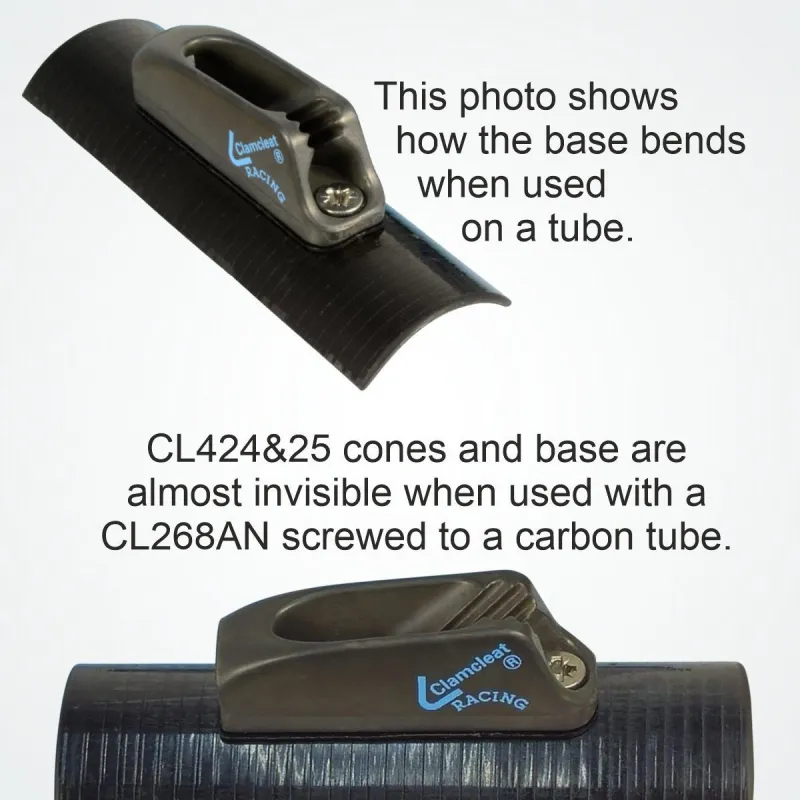

These Insulators are for our Micros range of cleats. The countersink cones fit under the screw or bolt heads and the baseplate fis under the alloy cleat. This prevents galvanic corrosion of the alloy cleat by keeping it separate from the fixings and surface.  Quick and easy to fit. The base will flex to fit any size of tube.

The PT424&25 is supplied as 1 base + 2 cones, attached to a sprue, to keep the parts together. To remove, just twist off by hand.

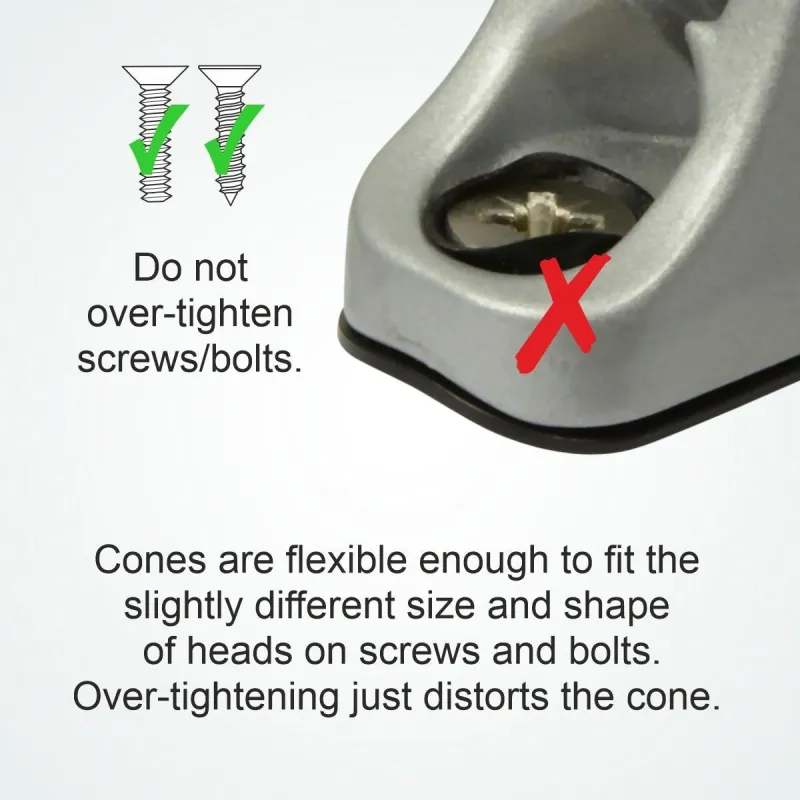

The cones are flexible enough to fit the slightly different size and shape of heads on screws and bolts. Do not overtighten as you will just distort the cone. As long as the cleat does not move, it will be fine.
The screw holes in the base are designed to be a tight fit for the screw/bolt, to make sure that these are insulated from the cleat.

Test results from our own agresive salt water testing, have proven these insulators really do eliminate corrosion problems.
