Clamcleat® CL241 Racing Sail Line Cleat (Port)

Clamcleat® CL241 Racing Sail Line Cleat (Port)

Technical Details		Metric	Imperial
Rope Diameter		3 - 6mm	1/8 - 1/4"
Material		Aluminium	Aluminium
Hole Centres		49mm	1 15/16"
Length		70mm	2 3/4"
Width		21mm	13/16"
Height		12mm	1/2"
Bolt Size		M4	#8-32. 5/32"
Screw Size		4.2	No 8
Weight		16gms	0.6oz

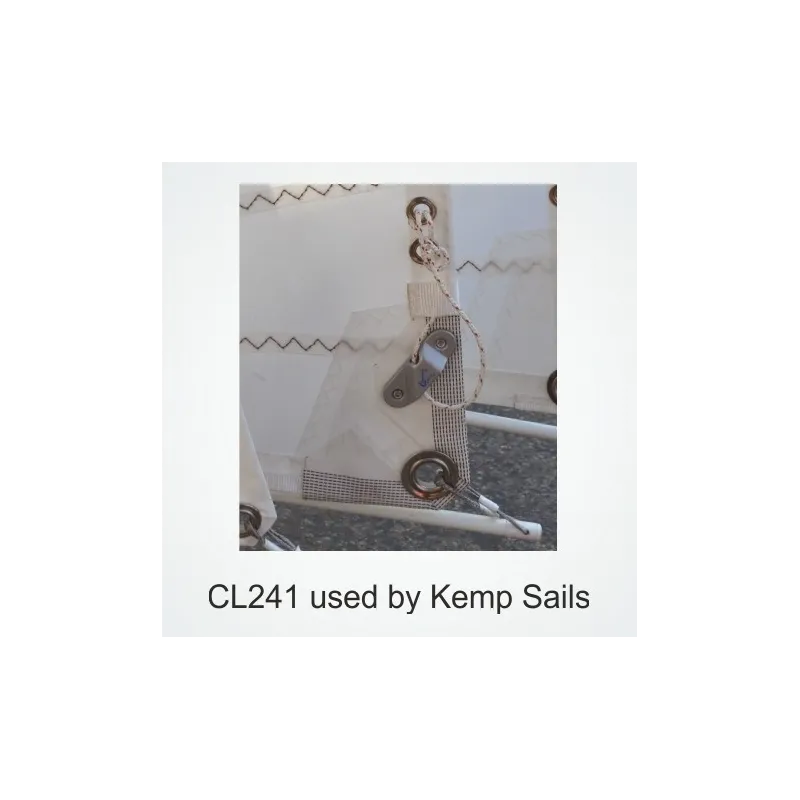

The tooth design of the CL241 Racing Sail Line Cleat (Port) allows a quick, positive lock that is easy to release. Add to this its low profile and ability to hold high loads, makes it ideal for tensioning leech line on larger sails. The integrated rope guide also make it suitable for adjusting & securing reefing points. The CL241 is also use as a low profile deck cleat and for tensioning tramploenes on dinghies and catamarans.  Manufactured from aluminium for light weight and durable performance it can be mounted in two positions.

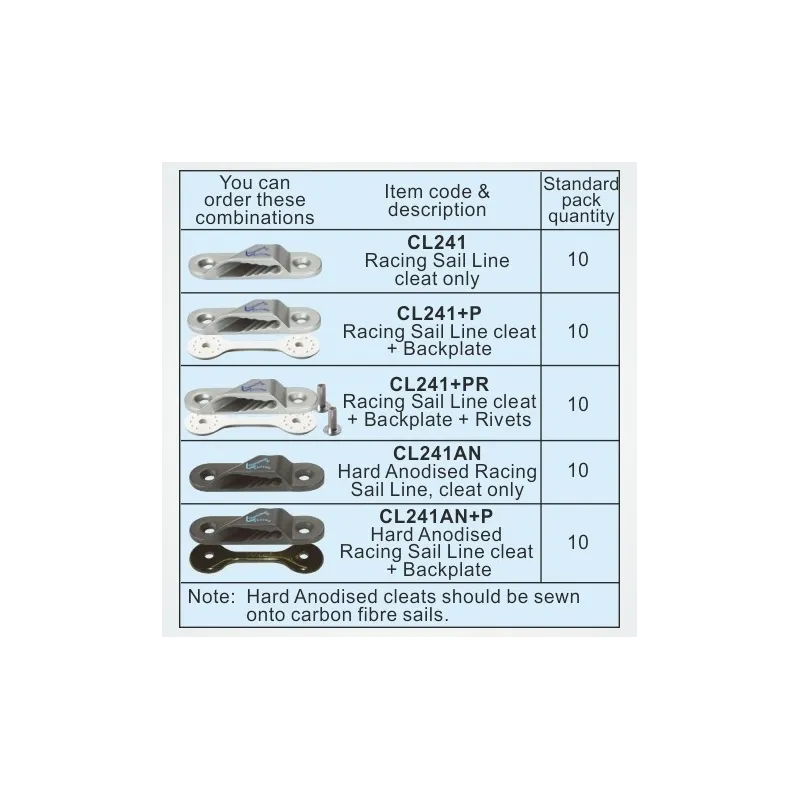

The CL241 has a silver stove enamel finish for a cost effective, high quality finish.
The CL241AN has a hard anodised finish to give the ultimate hard wearing surface.

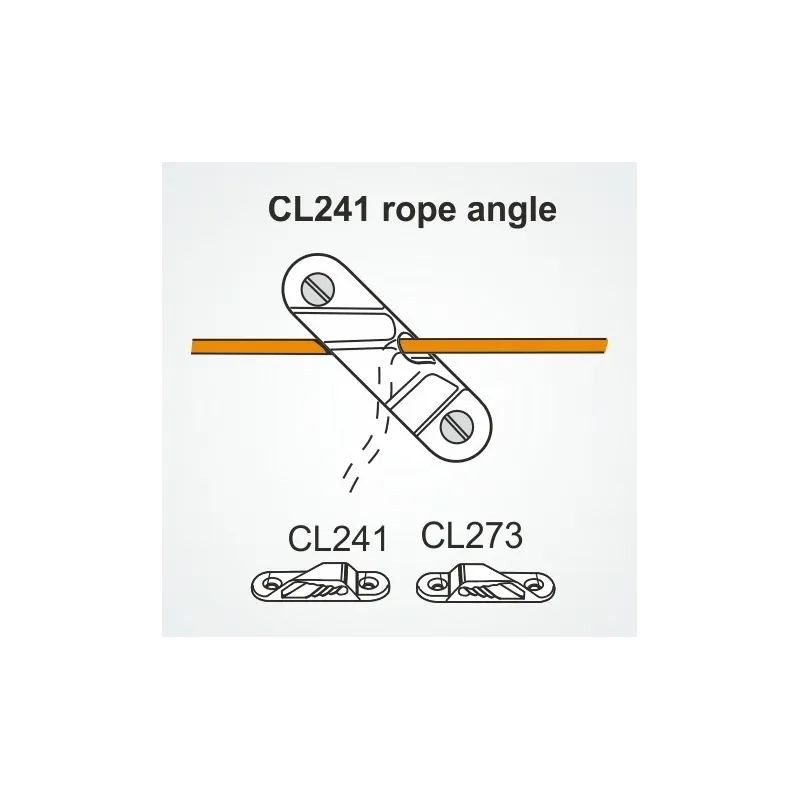

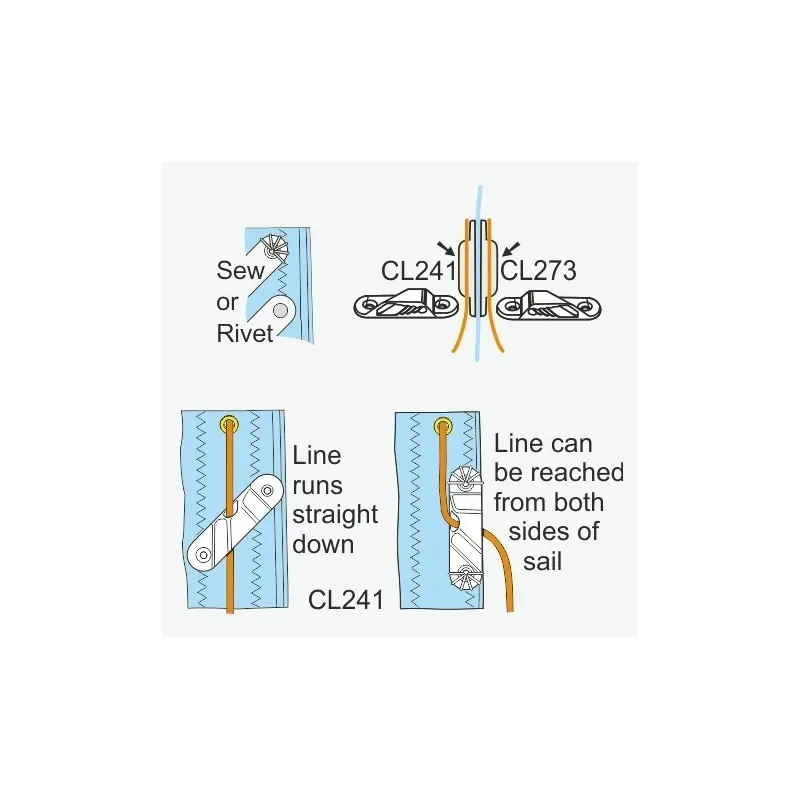

The Starboard version of this cleat is CL273. The plastic equivalent version of this cleat is the CL233. Use a backplate when riveting a cleat onto fabric as it will prevent the rivet pulling through. (Note that alloy cleats should be sewn onto carbon fibre sails, to avoid corrosion.)
