Clamcleat® CL818 Tapered Pad

Clamcleat® CL818 Tapered Pad

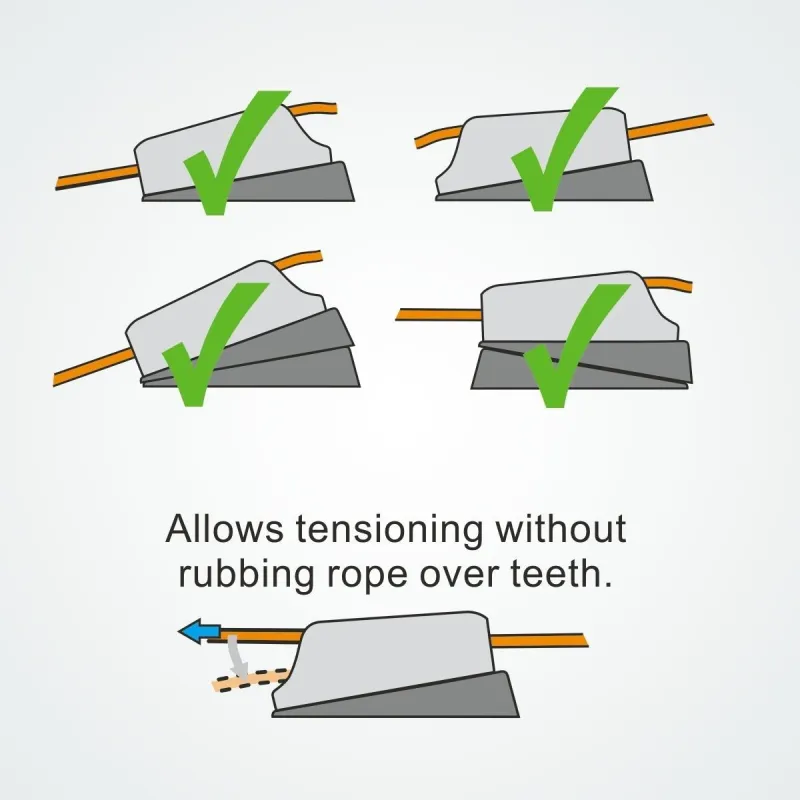

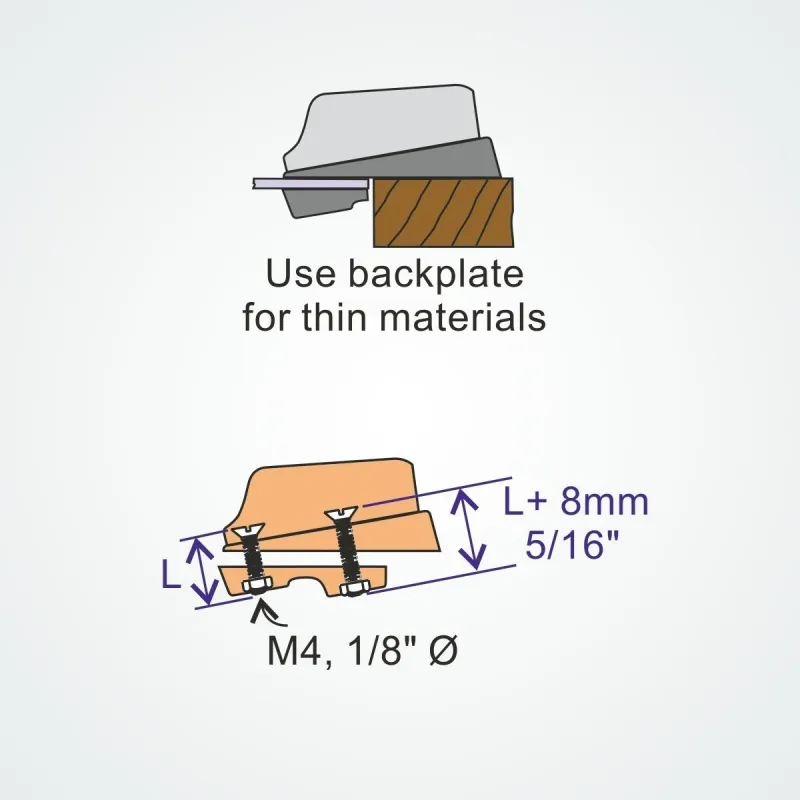

The Clamcleat® CL818 Tapered Pad aids correct rope/cleating alignment. It can allow tensioning without rubbing the rope over the cleat teeth. Can be mounted either way round. Backplate provides under deck support when bolting through thin sections and is supplied with every pad.

The CL818 fits under CL203, CL211 Mk1, CL211 Mk1AN, CL217 Mk1, CL217 Mk1AN, CL218 Mk1, CL218 Mk1AN, CL236, CL236AN, CL704 and CL704AN.
CL814 Keeper & CL816 Cage can also be used if required.

Technical Details		Metric	Imperial
Rope Diameter		N/Amm	N/A"
Material		Polypropylene	Polypropylene
Hole Centres		67mm	2 5/8"
Length		87mm	3 7/16"
Width		27mm	1 1/16"
Height		15mm	5/8"
Bolt Size		M5	#10-24. 3/16"
Screw Size		No 10	4.8
Weight		14gms	0.5oz
