Clamcleat® CL254 Racing Midi hard anodised finish

Clamcleat® CL254 Racing Midi hard anodised finish

The rope drops down into the teeth of the Clamcleat® CL254 to give a quick and positive lock that is easy to release. Will hold very high loads when used with high quality ropes. Manufactured from aluminium for light weight and durable performance.

Ideal for canvas structures and sports nets.

The CL254 is available in two finishes:
1. CL254 has a silver stove enamel finish for a cost effective, high quality coating. Suitable for all inland and coastal conditions.
2. CL254AN has a hard anodised finish to give the ultimate hard wearing surface. Excellent for extreme coastal conditions.
A Nylon version is also available - see CL209 below.
A smaller version of the CL254 is the CL275. A larger version is CL219.

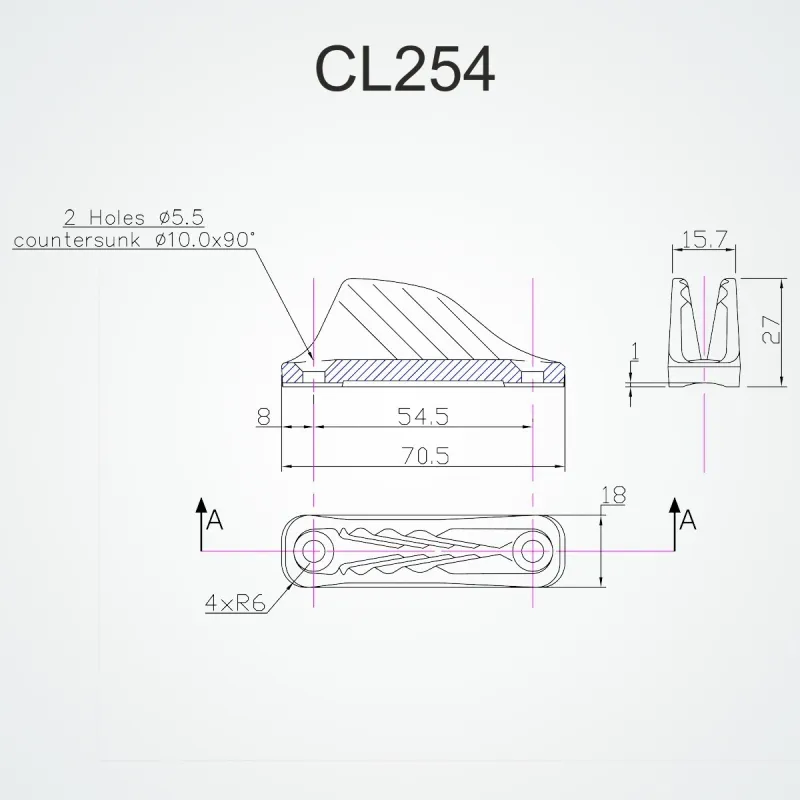

Technical Details		Metric	Imperial
Rope Diameter		4 - 8mm	5/32 - 5/16"
Material		Aluminium	Aluminium
Hole Centres		55mm	2 1/8"
Length		71mm	2 13/16"
Width		18mm	11/16"
Height		27mm	1 1/16"
Bolt Size		M5	#10 3/16"
Screw Size		4.8	No 10
Weight		38gms	1.3oz
