Clamcleat® CL817 Cage

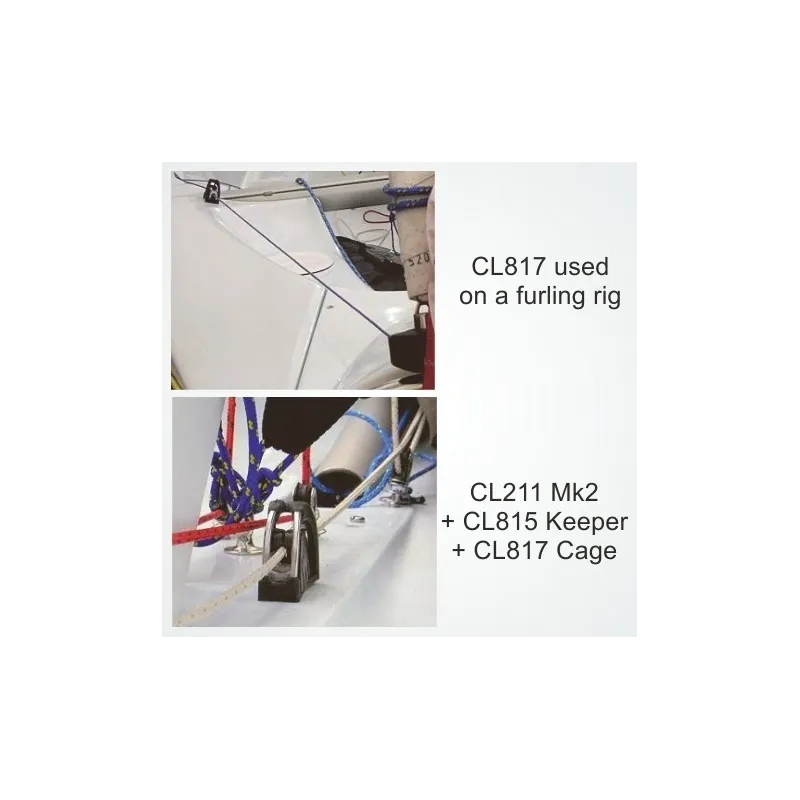

Clamcleat® CL817 Cage for CL815 keaper en CL211 Mk2 cleat. The Cage is an accessory that allows ropes to be cleated and uncleated at an angle of up to 70 degrees, rather than only in line with the cleat. Adding Cages to cleats fitted with Keepers will allow the helmsman or crew to adjust a control line from different positions quickly, easily, positively and without fear of accidental cleating. Simply pull the rope back at an angle and it is guided down into the teeth, as shown in the sketches below. The stainless steel rear fairlead provides a long life under racing conditions.

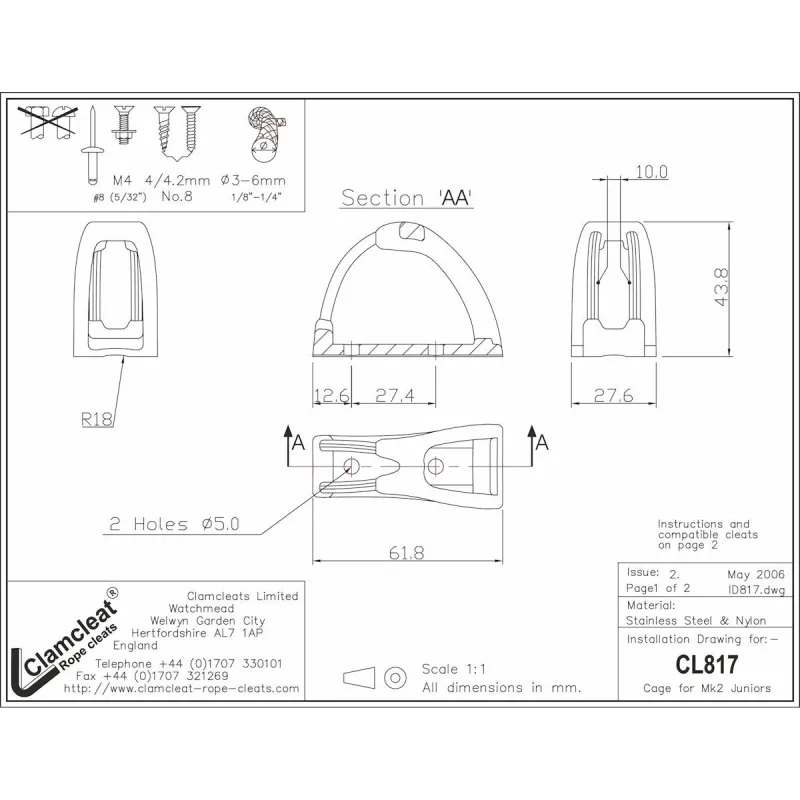

Technical Details		Metric	Imperial
Rope Diameter		3 - 6mm	1/8 - 1/4"
Material		Nylon & Stainless Steel	Nylon & Stainless Steel
Hole Centres		27mm	1 1/16"
Length		62mm	2 7/16"
Width		27mm	1 1/16"
Height		44mm	1 3/4"
Bolt Size		M4	#8-32. 5/32"
Screw Size		4.2	No 8
Weight		23gms	0.8oz
