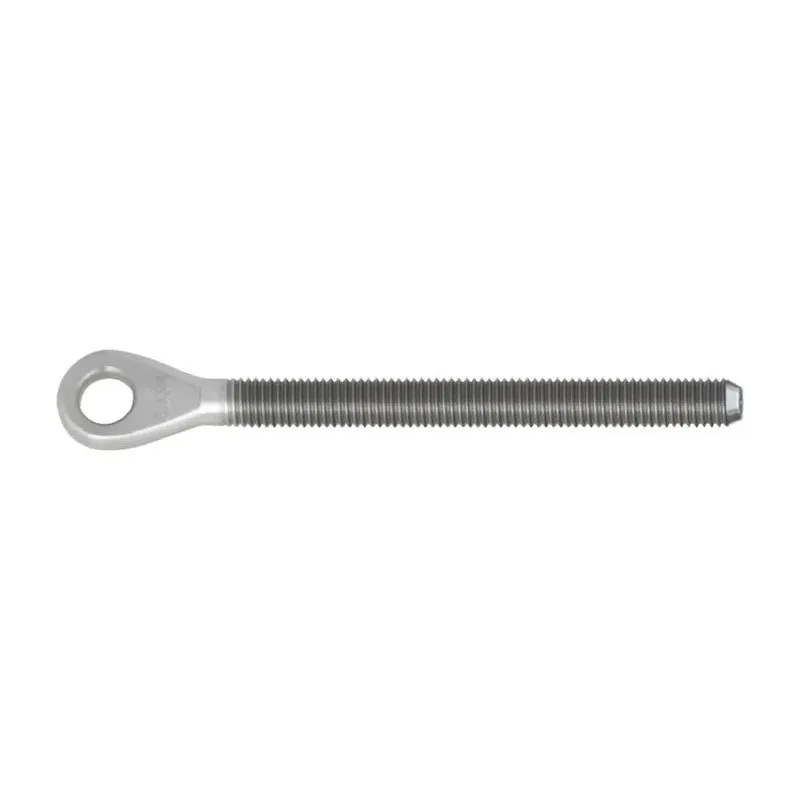

Ronstan Threaded Eye, 1/4" UNF Thread
Ronstan Threaded Eye, 1/4" UNF Thread
next product
next product

Ronstan Threaded Eye, 1/4" UNF Thread

Referentie RF1502-0404
€ 30,00
Inclusief belasting

Aantal

Laatste items in voorraad

4,7/5 op basis van 42 beoordelingen

Snelle verzending. Gratis bezorging boven €50

Gratis verzending in Europa boven €300

Terugbetaling binnen 30 dagen

Ronstan CALIBRATED TURNBUCKLE

Premium Closed Body

TOGGLE CALIBRATED BODY ASSEMBLIES

FEATURE

  • Laser etched calibration
  • Dissimilar metals
  • Fine, rolled threads
  • Tapered lock nut
  • Multi axial toggles
Cable Ø 3-4 mm
Thread 1/4" UNF

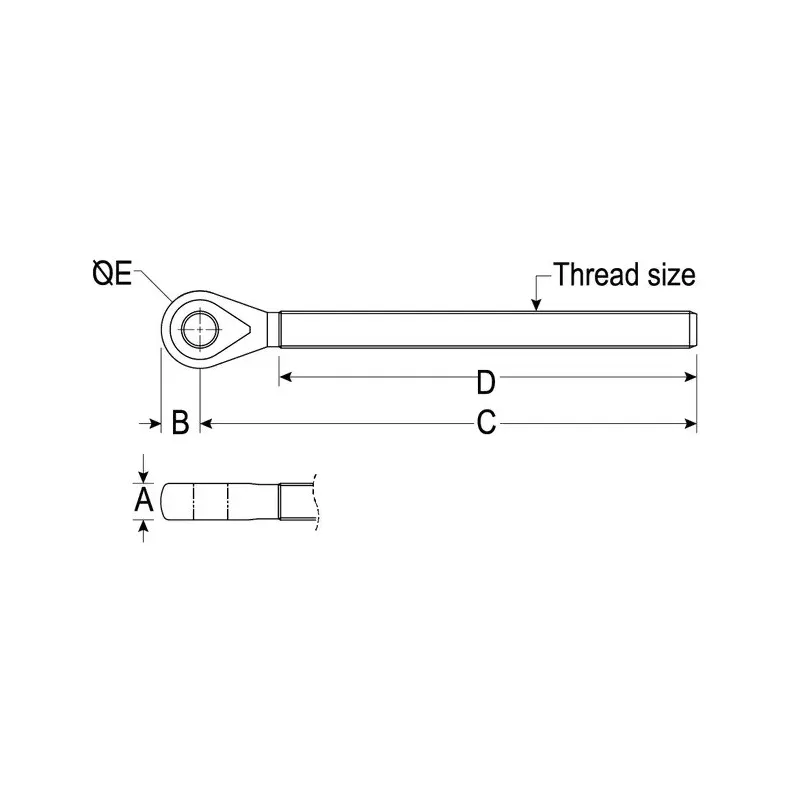

A 8.3 mm
B 8.0 mm
C Max - mm
C Min - mm
D 15.0 mm
E 6.4 mm
B. L. 1630 kg
Weight 83 g

PRODUCT INFORMATION

Laser etched calibration marks allow accurate, repeatable settings for precise adjustement and tuning of rig tension. Type 1 turnbuckles have a sleek, modern profile with no sharp edges.

Toggles are designed with full universal movement for easy installation and connection and allow the assembled cable to move where the structure is subject to wind loads or vibration.

APPLICATIONS

  • Precise adjustment for metric wire rigged boats from dinghies through to small keelboats
RF1502-0404

Specifieke referenties

ean13
9316800561728
